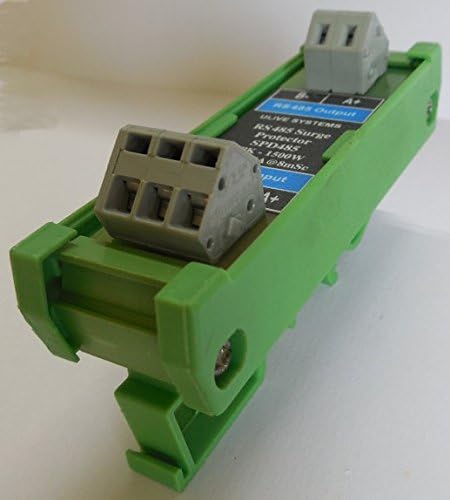

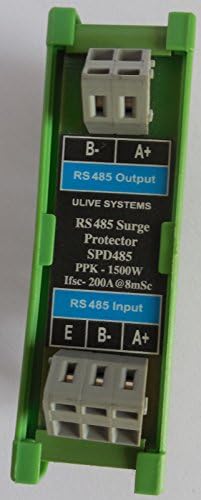

Ulive systems Surge Protection Device for RS485 Field Bus Application

Description

Price: ₹3,999.00
(as of Nov 12, 2024 10:03:10 UTC – Details)

Three-stage SPD485 surge safety system meets normal safety towards energy surges, voltage surges, frequent mode line noise and disturbances with three levels of safety and filter every supported with Transient Voltage Suppresser (TVS). Housed in a din rail panel mount case with a protected earth floor . In order to work correctly, it is very important have an excellent connection in E terminal to stable earth floor. Application:- Modbus, Profibus and DMX purposes or any RS485 subject bus utility 5 Volt differential or single ended knowledge strains Industrial and constructing automation Solar energy monitoring systems Industrial knowledge communication systems Electrical Properties: Characteristic Value Unit Peak energy dissipation with a 10/1,000μs waveform Max. 1,500 W Operating voltage Max 9 V DC V Operating Humidity Zero to 95% RH Operating temperature vary Zero to +85 °C °C Dimensions eight x 2 x 5 cm cm Line Impedance Z max 1500 ohm Ohm DC Resistance R DC : 2x 0.23 ohm Ohm Inductance 2x 22 +/- 20% µH Item provided with Original VAT bill
Modbus, Profibus and DMX purposes or any RS485 subject bus utility
Industrial knowledge communication systems
Suitable for photo voltaic purposes
Suitable for drive communications
